Several years ago a friend of mine asked me to teach him how masks work in Photoshop. This is my incredibly late response.
We’ll go over the basics of what masks are, what they’re used for and
how wielding them properly will take your Photoshop skills to an
entirely new level.
Like the article? Be sure to subscribe to our RSS feed and follow us on Twitter to stay up on recent content.
What Is a Mask?
Layers are probably the single most important addition to Photoshop
since the original version, but layer masks are a close second. I would
posit that until you thoroughly understand how and why to use masks, you
simply don’t understand the power of Photoshop.
The term “mask” isn’t immediately understandable to someone outside
the realm of graphic design. At its simplest definition a mask is a way
to apply something to a very specific portion of an image.
There are two primary types of masks: clipping masks and layer masks.
These two tools are closely related in concept, but very different in
application. Let’s start by discussing layers masks, which are generally
what people are referring to when you hear them discuss Photoshop
A layer mask is something that you apply to a given layer to control the transparency of that layer. Where layer opacity controls the transparency of the entire layer at once, a mask
gives you more precise controls over very specific areas. If you want
the entire layer to be at 30%, you would lower the opacity, if you want
just the left side of a layer to be at 30%, you would use a mask.
When you add a mask to a layer, it covers the entire thing with an
invisible grayscale canvas. There are ways to see it that we’ll check
out later but just know that as a general rule, applying a mask to a
layer won’t cause any immediate visual differences unless you have an
active selection at the time.
On this invisible canvas, you can paint white, black or any level of
gray in-between. The color that you paint tells Photoshop how opaque to
make the pixels at that point. White means 100% opacity and black means
With this in mind, try to imagine what the mask below would do to a layer:
As you can see, if our mask was all white with the three circles
shown above, we would have a completely visible layer where in all the
white areas, and spots of transparency in the circles. If we apply this
mask to a layer, this is the result:
Clipping masks are very similar to layer masks only they use one
layer to determine the transparency of another. In this scenario, you
stack two layers on top of each other with the bottom being the
determining factor of the transparency of the top.
Instead of using black and white values though, clipping masks simply
borrow transparency from the layers used to make them, namely the
bottom layer. If the bottom layer has some areas that are opaque and
some areas that are transparent, a clipping mask will apply these values
to the top layer.
This one is hard to explain without an example, but becomes crystal
clear when you see it in action. Let’s use the two layers shown below
and say that our goal here is to cut or “clip” the wood layer to be in
the shape of the letters. Notice that, at this point, the wood is the
bottom layer and the text is the top layer.
To achieve the effect that we want, simply swap the position of the
layers so that the wood is on the top, then go to the Layers menu at the
top of your screen and select “Create Clipping Mask”
(Command-Option-G). Voila, we now have the effect we were going for.
Where the text layer was opaque, the wood layer is now opaque and where
the text layer was transparent, the wood layer is now transparent.
There’s some really interesting functionality here. You can still
position and make changes to each of the two layers independently. By
dragging around the wood layer, you move the position of the texture
inside the bounds of the letters while the letters themselves stay
Also, you can apply layer effects to the compilation via the bottom
layer. For instance, here’s what happens if we select the text layer and
add an Inner Shadow.
Clipping masks fun, functional and underrated, but the truth is that
layer masks are far more common in every day use. The information above
should be enough to get you off and running with clipping masks so from
here on out we’ll focus purely on layer mask functionality.
How Do I Make a Layer Mask?
Now that we have a strong grasp of exactly what masks are and how the
two different types of masks differ, let’s see how to create and work
with a layer mask.
The first thing we need is two layers. I grabbed the two images below from photographers Adrian Durlea and Erik Soderstrom. The shack image is on the bottom and the fire is on the top.
The general idea here is to take some, not all, of the fire and apply
it to the shack. The first step is to stack the two images as we see
above and set the fire layer’s blending mode to Screen. This will make
all of the black pixels transparent, which blends the two images
With that one change, this is already a pretty decent image! Let’s
say though that we want to only have fire near the door of the shack. To
accomplish this, we’ll need to add a mask to the fire layer. Select the
fire layer and click the mask icon shown in the image below.
Now, with the mask selected in the layers palette, we grab a soft,
black brush and paint out the portions of the fire that we don’t want to
see. As we do this, the fire begins to disappear. To bring it back, we
simply paint white.
As you can see in the image below, with just a little painting, our
fire is now much more centralized to the portion of the image that’s
already lit up and therefore looks decently natural.
To see the actual mask, Option-Click (Alt-Click on a PC) on the
little mask preview in the layers palette (Shift-click to hide the mask
completely). After painting out some of our fire, this brings up the
Notice that we’re not just constrained to hard edges. The beauty of
masks is that you can do anything you want with them as long as you can
pull it off in values of gray. This means you can paint, clone, create
and fill selections, copy and paste, and all kinds of other actions you
perform on the main canvas.
Why Not Just Erase?
Upon first learning how to use masks, most rookies think the same
thing: “I can already do all of this with the eraser tool.” Wrong! In
fact, as far as I’m concerned, once you learn to mask, you should
literally never pick up the eraser tool again because it tends to be so
What do I mean by destructive? Think about what happens when you use
the eraser tool: it erases pixels. Mind you, it doesn’t hide them for a
while until you want them back, it “destroys” the pixels. The changes
that you make by deleting portions of a layer are permanent and can’t
exactly be tweaked later.
This is simply a horrible way to work. With every new iteration of
Photoshop, Adobe gives us more and more ways to make non-destructive
edits, meaning those that don’t truly alter the original pixel data. For
instance, Filters used to be a permanent and destructive change, if you
blurred a layer, it was stuck that way! Now, with Smart Filters, you
can always go back and adjust or even delete the blur.
This same concept gave birth to masks many years ago. With a mask,
you not only have the ability to make remarkably detailed decisions
about the transparency of a layer or group of layers, even better, you
have the freedom to go back and refine or scrap those changes at any
time. If I had erased my fire in the example above, it would be gone
forever and bringing it back would involve importing the layer all over
again. However, because I used a mask, all I have to do is fill that
mask with white and immediately all of my fire detail returns.
To use the metaphor of an actual mask, imagine that you want to
change your appearance for Halloween. You have two options: the first is
to undergo plastic surgery to permanently change your face to look like
that of a scary creature and the second is to wear a mask. In this
scenario, the eraser tool is plastic surgery. It’s simply a bad choice
when you’re not sure that you want the changes to be permanent. Go with
the mask instead.
Advanced Masking Techniques
The information above is an absolute beginner’s guide to masks. Odds
are, if you’ve been using Photoshop for a while, not a single piece of
this was news to you. In fact, you may be thinking that masks are so
incredibly simple that they barely merit conversation.
However, masking techniques go from simple to wickedly complex really
fast. It’s easy enough to paint some broad strokes to erase large
portions of an image, but what if you want to do something more complex?
For instance, let’s say we want to take the cat below off of its white background.
Furry animals make particularly difficult masking subjects. All of
that fine hair detail means making an accurate selection will be time
consuming. The Magic Wand or even the Pen Tool are of no use to us here.
So how do the pros start with the image above and create a mask like
the one below?
If you’re ready to find out, keep reading as we undertake this feat!
Change the Channel
The good news about the cat image is that there is plenty of contrast
to work with. The key to making a good mask is finding contrast and
knowing how to pull it out. Here we have a fairly dark cat on a bright
white background, which means all we have to do is figure out how to
leverage our good fortune and convert the contrast already present into a
The first step in a project like this is to jump over to the Channels
Palette and look for the channel with the most contrast. So in our
case, we want the channel with the darkest cat and the brightest
background, which turns out to be the blue channel.
Make a copy of the blue channel, select it and hit Command-L to bring
up a Levels Adjustment. Darken the shadows and the midtones so that
there is a crazy amount of contrast like in the image below. Be careful
to no go too far with this adjustment. You’ll want to zoom in and watch
the hair detail on the fringes of the fur to make sure you’re not
clipping too much. It doesn’t have to be perfectly black and white at
this point, some dark grays are acceptable.
At this point you encounter one of the trickiest steps of the entire
process. The goal is to get as much of the cat as closest to black as
you can. This is easy for the face potions and other random spots near
the center, just grab a black brush and fill them in. But what about the
edge of the hair?
It turns out one of the best ways to handle this task is to use a
couple of unlikely candidates: the Dodge and Burn Tools. The reason
these work so well is that they can accurately target certain ranges of
gray extremely accurately. I set the Dodge Tool to target the highlights
and the Burn Tool to target the shadows, grab a medium size soft brush
and make my way around the edges of the image, burning shadows and
dodging highlights until I like the level of detail that I’m seeing.
This may sound like a time-intensive task, and it can be for some
images, but in truth the Dodge and Burn Tools feel like magic when
you’re using them and take much of the work out. I was able to come up
with a great looking silhouette in only a minute or two.
Once you’re done here, hit Command-Shift-I to inverse the channel so
that the cat is white and the background is black like in the image
below. Remember that, in masking, white is opaque and black is
Converting the Channel to a Mask
Now that we have a channel that accurately represents what we want
from a mask, how do we convert it? There are a few ways to do this but
the easiest is just to Command-click on the channel to load a selection.
With a selection loaded, return to your cat layer and click the New
Mask button. That’s all there is to it!
Defringing the Mask
As you can see, despite a super detailed mask, we still have some
white fringing occurring around the edges. Getting rid of this can
literally take hours of tedious work if you don’t know what you’re
doing. For starters, we can use the fantastic new Masks Palette in
conjunction with Refine Edge to make some live adjustments to our mask.
Utilizing these tools properly takes practice. I won’t cover them
closely now because it would take so much time but I encourage you to
dig in and play with all of the controls to get a feel for what they do.
Often, you can patch up a rough edge in seconds with these sliders, but
with our cat project I wasn’t really getting any results that I liked
so I cancelled out this operation altogether.
Instead, I went to the Layer menu at the top of the screen and
selected Matting>Color Decontaminate. This is an almost hidden
command that has the ability to yield some amazing results. As you can
see in the image below, it went a long way toward reducing our halo.
Note that this command is actually destructive so you should always
duplicate your layer before using it.
From here, the last trick I use is to look for problematic areas and
actually run the clone brush over the fringes. The mask keeps everything
looking nice and cloning replaces unnatural colors with those from the
actual fur of the cat in other places. Compare the back and head of the
cat in the image below to that above to see the improvement.
From here it becomes a factor of how much time you want to spend
refining your result. With complicated masks like these there is always
room for improvement but you’ll find that the point of diminishing
returns on your time spent becomes easier and easier to spot as your
skill level improves.
The technique we just discussed is just to give you a taste of how
advanced masking can become. There are a ton of different types of
images to mask and therefore a million different tricks and techniques
to figure out along the way which can be mixed and matched on a
per-project basis. Practice makes perfect, just be bold and never become
intimidated by a masking job that seems too complex. Think through the
process one step at a time and find ways to pull out the detail you

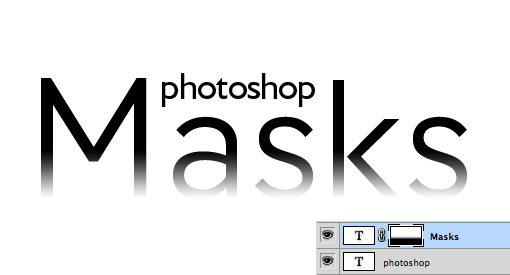

To sum up, there are two primary types of masks in Photoshop: layer
masks and clipping masks. Layer masks use values of gray to assign
levels of transparency to specific portions of a layer or group of
layers while clipping masks use the transparency of one layer to define
that of a different layer or group of layers.
Also, while masking in simple in concept, the actual art takes
considerable time, education and practice to master. Leave a comment
below and let us know if you learned anything from the information
above. Also be sure to share any unique masking techniques or tricks you
- الجنس :
عدد المساهمات : 1585
النقاط : 32864
التقييم : 34
تاريخ التسجيل : 2010-02-03
